ZR Series of in-Mold tapping machine
ZR Series of in-Mold tapping machine

·  Suitable for punch stroke of 50-500mm.

·  Tapping size is metric thread from M2 to M45 or corresponding inch UNC/UNF/BSW threads.

·  The tapping direction has wide generality with up-down or bottom-top moving.


Down
Results Show
Parameter Specification

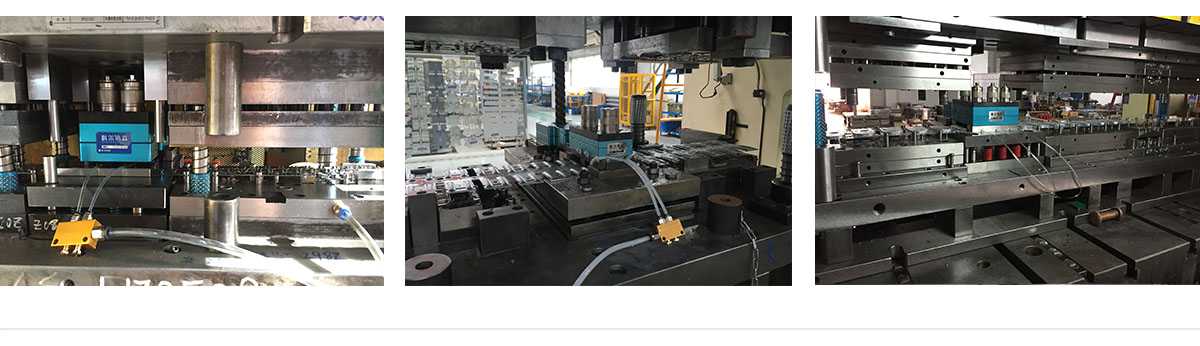

Install the renderings

zr.jpgConfigurations

· Screwtap detector.

· Mutifunction secrity detector for tooling.

· Bottom dead centre detector.

· Positioning system for product.

· Thread detector system.

· Screwtap cooling system.




Technical parameter

Model

Punch

Stroke

Center

distance

Tapping

Size

Qty of

tapping

hole

Installation

 type

Remarks

1ZR19

1ZR19F

50-500 mm
-

Metric M2-M12

or corresponding inch

UNC /UNF /BSW threads

1

Suspended installation

 with quick dowel

positioning

Standard

1ZR25

1ZR25F

Customized
2ZR

According to

 drawing of

installation scheme

2
3ZR3
4ZR4
5ZR5
6ZR6
7ZR7
8ZR8
9ZR9
10ZR10

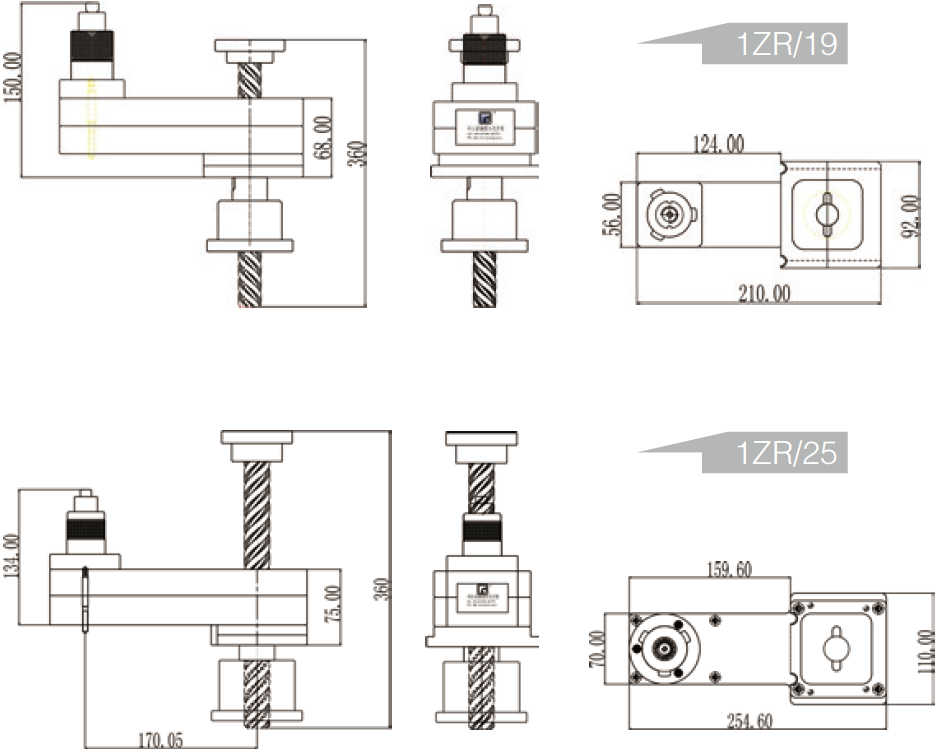

Overall dimension





How to order

DZX-1ZR/19-T

DZX-1ZR/19F-T

DZX-2ZR-T-W

T:means punch stroke

F:means customized span

W:means ceter distance
