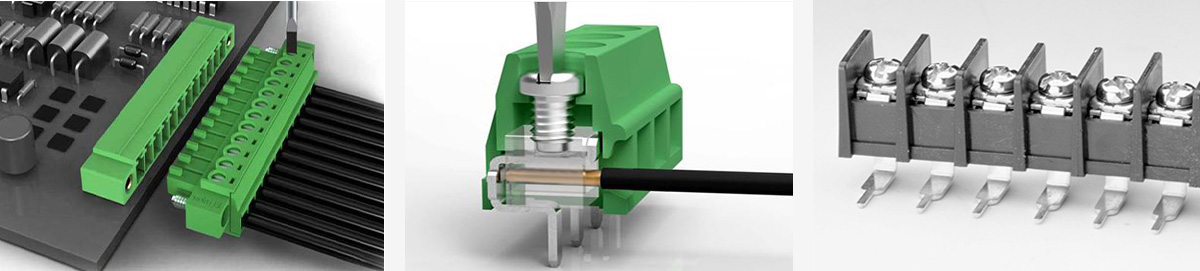

Terminals are used to achieve an electrical connection of an accessory product, the industry is divided into the scope of the connector. With the increasing degree of industrial automation and industrial control requirements more stringent, accurate, the amount of terminals gradually increased. With the development of the electronics industry, the use of more and more terminals, and more and more types. At present, the most widely used in addition to PCB board terminals, there are metal terminals, nut terminals, spring terminals and so on.

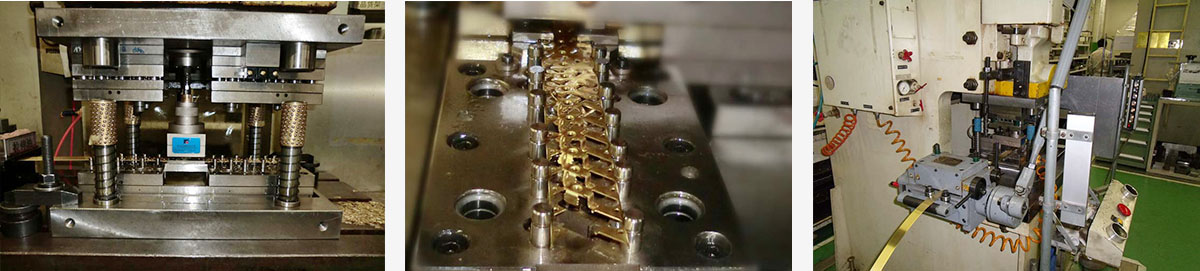

Material: 1.0 single film
Material thickness: 1.0MM
Digging depth: 2.0MM
Production speed: 60S.P.M.
Thread Size: 2BA
Selection of models: 4ZG (inverted attack)
This is a daily life to see a lot of electrical terminals, all kinds of need to pick up the power or mechanical signal contact points a lot of use.
Our common thread specifications are based on metric threads, many friends received a single time in the processing of the thread when the problem occurs, just the next, but what is the requirements of the 2BA? This product is inside the 2BA is a relatively rare thread size. This thread is the British general thread, also known as Wyeth thread, belonging to the small thread series, from 0-14 a total of 15 kinds of specifications, aperture 6-1mm decreasing. This kind of specifications of the tap if the production and processing in the country is very difficult to find the tap, the general need for customization have a supply. So when dealing with friends pay attention to thread marked, in addition to metric threads but also the British thread and the US thread. Even if the metric thread has coarse and fine teeth, for example, the same M4 thread M4 * 0.7 coarse teeth and M4 * 0.5 fine teeth.
