B Series of in-Mold Tapping machine
B Series of in-Mold Tapping machine

·  Suitable for punch stroke of 50-500mm.

·  Tapping size is metric thread from M2 to M12 or corresponding inch UNC/UNF/BSW threads.

·  Threads forming of horizontal positon in 360° direction.

·  Can meet the special requirement of tapping after forming.

·  Quick push-in installation with complete machine or split type position installation.

·  Rapid collet replacement for screwtap by pressing clips of collet directly.

·  Can be customized as special request.

Down
Results Show
Parameter Specification

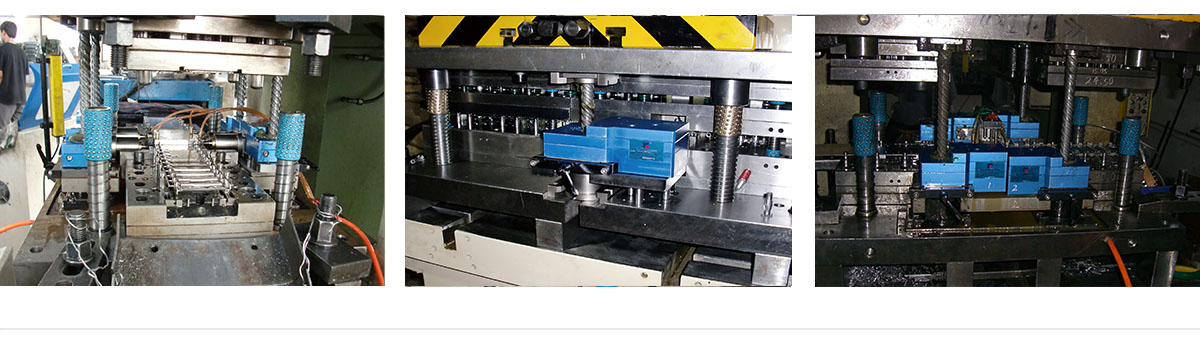

Install the renderings

b.jpgConfigurations

· Screwtap detector.

· Mutifunction secrity detector for tooling.

· Bottom dead centre detector.

· Positioning system for product.

· Thread detector system.

· Screwtap cooling system.




Technical parameter

Model

1B

2B

3B4B5B6B
Punch Stroke50-500mm
Center distanceAccording to drawing of installation scheme
Tapping SizeMetric M2 -M12 or corresponding inch UNC/UNF/BSW threads
Qty of tapping hole1
23456
Installation type

Quick push-in installation with complete machine or split type position installation

RemarksStandardCustomized

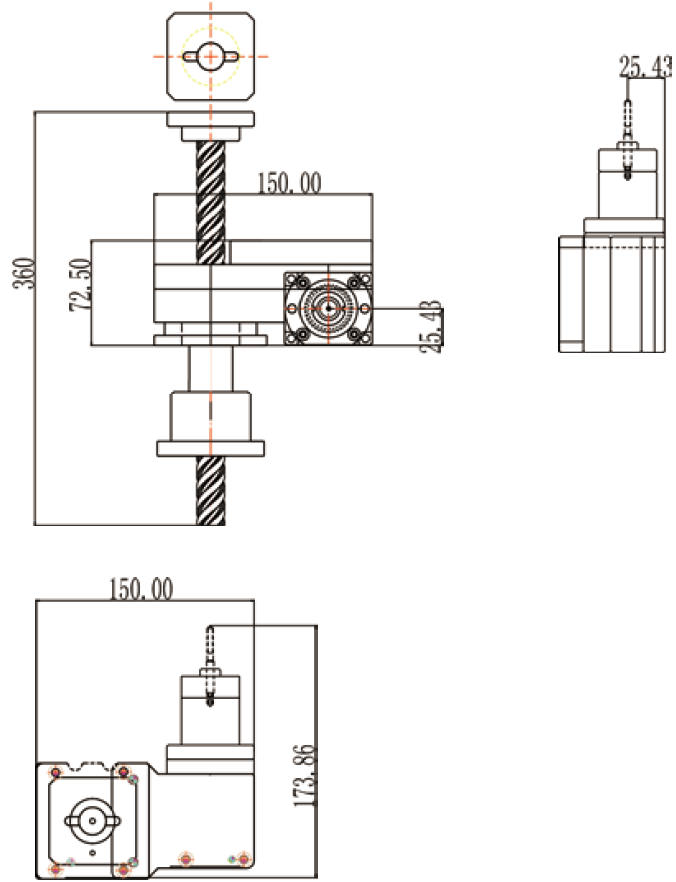

Overall dimension






How to order

DZX-1B-T

DZX-2B-T-W

T:means punch stroke

W:means ceter distance
