X Series of in-Mold Tapping machine

· Suitable for punch stroke of 50-500mm.

· Tapping size is metric thread from M2 to M12 or corresponding inch UNC/UNF/BSW threads.

· Threads forming of tilt positon with 0-90° direction.

· Can meet the special requirement of tapping after forming.

· Quick push-in installation with complete machine or split type position installation.

· Replace screwtap by dismounting collet alone.

· Can be customized as special request.

Down

HOME> PRODUCTS> Oblique tapping machine> X Series of in-Mold Tapping machine

Results Show

Parameter Specification

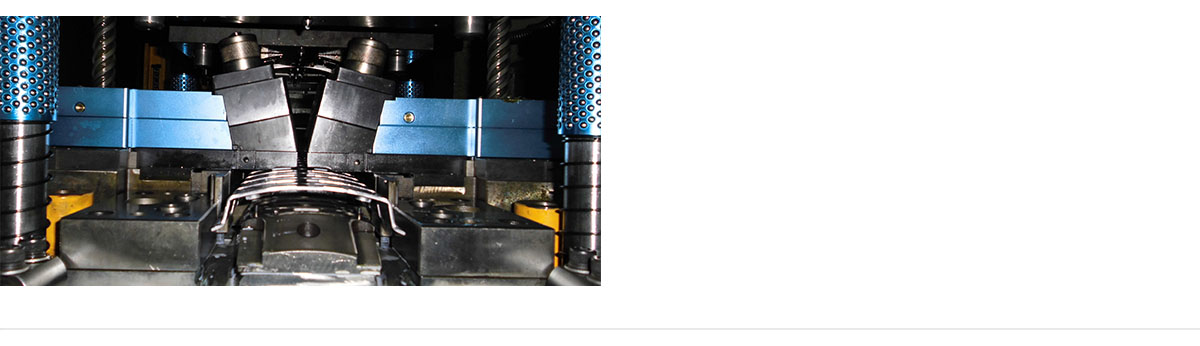

Install the renderings

Configurations

· Screwtap detector.

· Mutifunction secrity detector for tooling.

· Bottom dead centre detector.

· Positioning system for product.

· Thread detector system.

· Screwtap cooling system.


Technical parameter

Model	1X	2X	3X	4X	5X	6X
Punch Stroke	50-500mm
Center distance	—	According to drawing of installation scheme
Tapping Size	Metric M2 -M12 or corresponding inch UNC/UNF/BSW threads
Qty of tapping hole	1	2	3	4	5	6
Angle of inclination	0-90°
Installation type	Quick push-in installation with complete machine or split type position installation
Remarks	Customized
