Z Series of in-Mold Tapping machine

· Suitable for punch stroke of 20-500mm.

· Tapping size is metric thread from M0.6 to M45 or corresponding inch UNC/UNF/BSW threads.

· The tapping direction has wide generality with up-down or bottom-top moving.

· Quick push-in installation with complete machine or split type position installation.

· Rapid collet replacement for screwtap by pressing clips of collet directly.

· The minimum pitch is 13mm.

· Can be customized as special request.

Down

HOME> PRODUCTS> > Z Series of in-Mold Tapping machine

Results Show

Parameter Specification

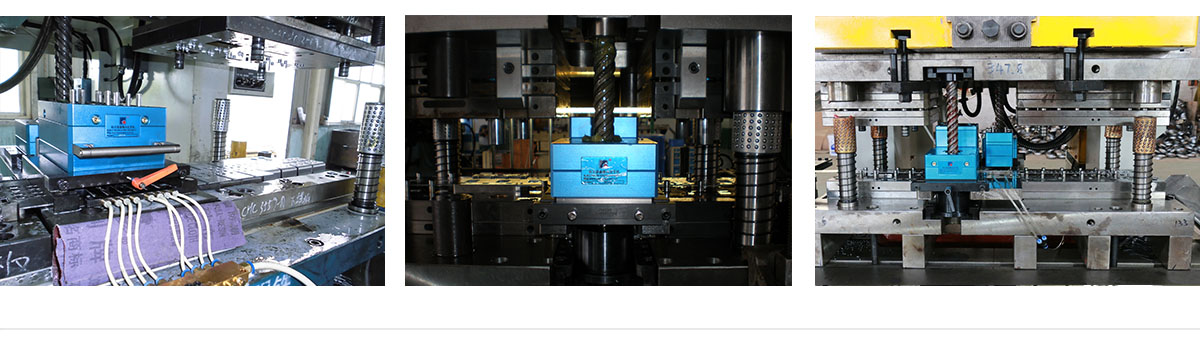

Install the renderings

Configurations

· Screwtap detector.

· Mutifunction secrity detector for tooling.

· Bottom dead centre detector.

· Positioning system for product.

· Thread detector system.

· Screwtap cooling system.


Technical parameter

Model	1Z	1ZF	2Z	3Z	4Z	5Z	6Z	7Z	8Z	9Z	10Z
Punch Stroke	20-500mm

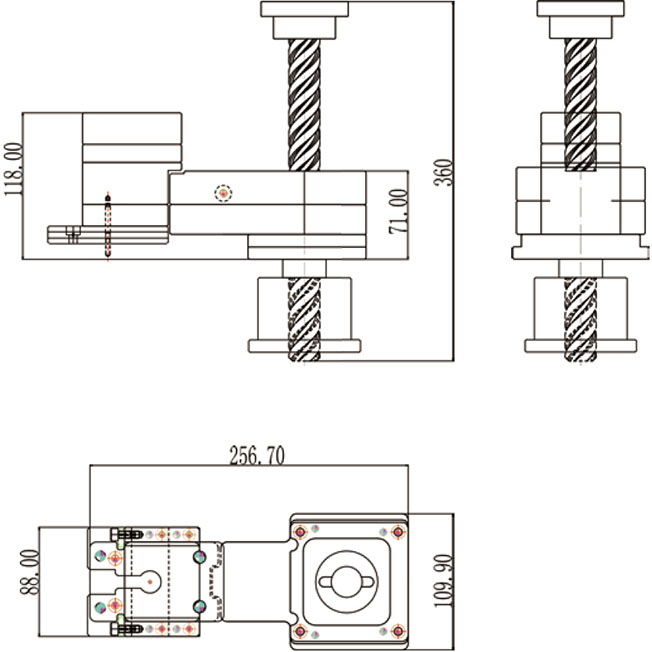

Center distance	—		According to drawing of installation scheme
Tapping Size	Metric M0.6 -M45 or corresponding inch UNC/UNF/BSW threads
Qty of tapping hole	1		2	3	4	5	6	7	8	9	10
Installation type	Quick push-in installation with complete machine or split type position installation
Remarks	Standard	Customized
