NC Full Range of in-Mold Tapping Machine
NC Full Range of in-Mold Tapping Machine

· Servo motor driver.

· Can be used in-die or in-line processing without any punch strokes limited.

· 20 holes can be thread formed at the same time by mechanical transfer force.

· Tapping sizes are metric M0.6-M20 or the corresponding UNC/UNF/BSW sizes.

· The tapping direction can be horizontal or vertical.Also tap through holes or blind holes.

Automatic and manual operation,punch processing are synchronously.Screwtaps detected while a stroke finished.

· The fastest speed is up to 60times/m.

· The minimize pitch of holes is 13mm cause of advanced collet technology.

· Use the color touch screen controller to enter humanized and change all the application parameter of tapping.

· Tapping status real-time displayed,ability to record the tapphing numbers.

· Install quickly.independent controller ensures installation and debugging easily.

· 45 kinds of different tapping ways.

· With torque overload protection system.

· Can be customized as special request.


Down
Results Show
Parameter Specification

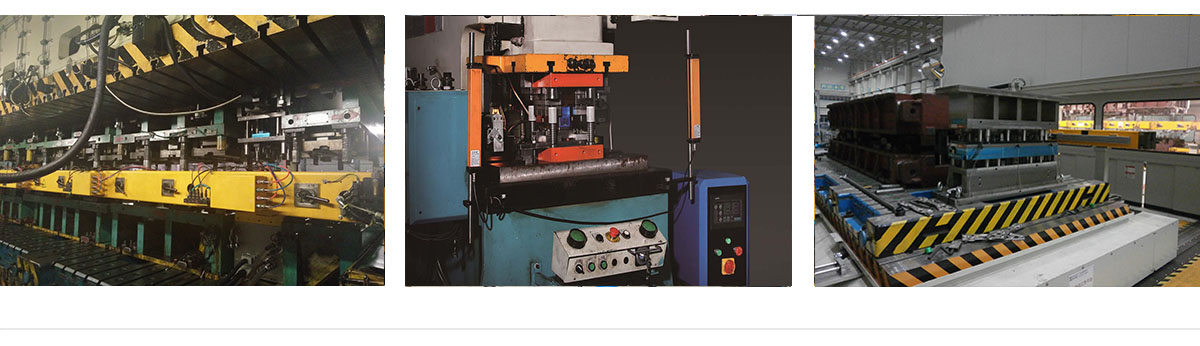

Install the renderings

nc.jpgConfigurations

· Screwtap detector.

· Mutifunction secrity detector for tooling.

· Bottom dead centre detector.

· Positioning system for product.

· Thread detector system.

· Screwtap cooling system.




Technical parameter

Model

NCK1

NCK2

NCK3NCK4NCK5NCK6NCK7NCK8NCK9NCK10
Punch StrokeNo limited to any punch strokes
Center distanceAccording to drawing of installation scheme
Tapping SizeMetric M0.6 -M20 or corresponding inch UNC/UNF/BSW threads
Qty of tapping hole1
2345678910
VoltageThree phase 220V50Hz
Drive modeMechanical drive type
Installation typeQuick push-in installation with complete machine or split type position installation
RemarksCustomized



How to order

DZX-NCK1-T

DZX-NCK2-T-W

T:means punch stroke

W:means ceter distance
